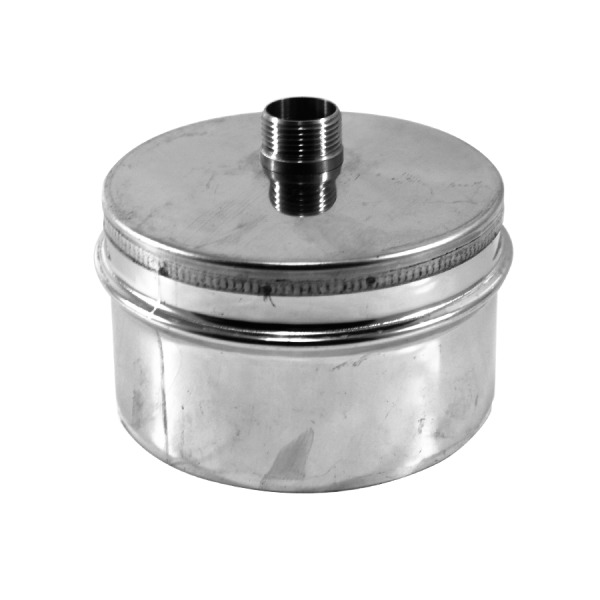

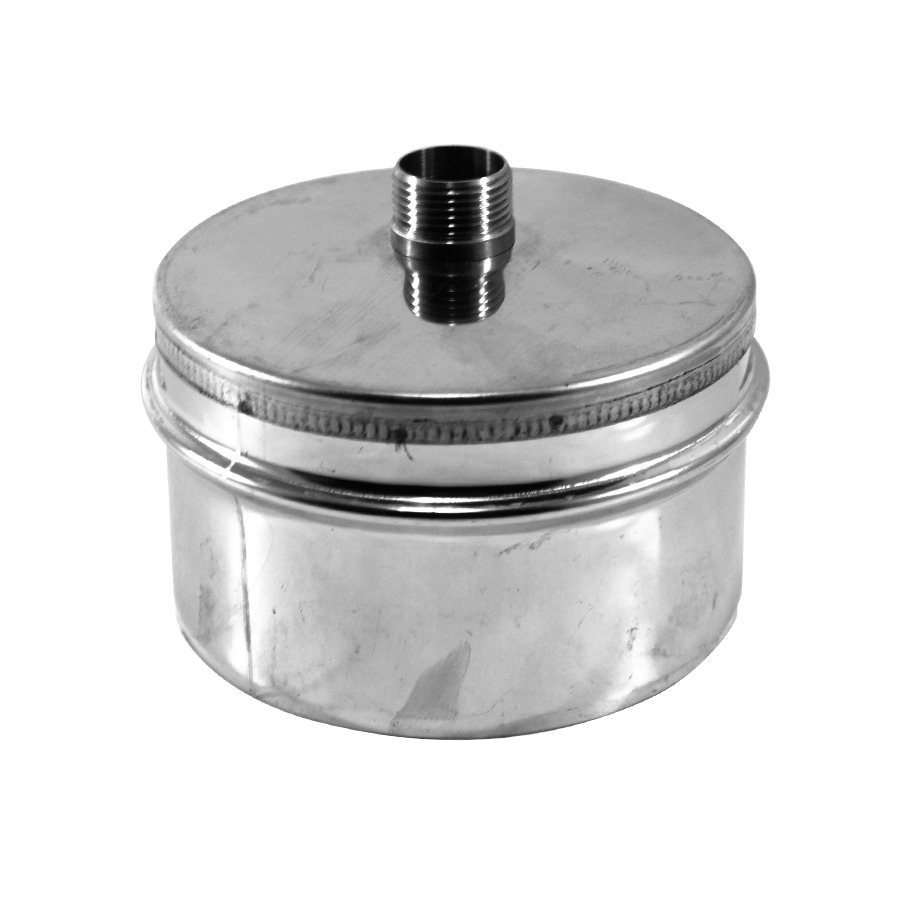

Top insulated with drain double wall Inox-Galva A-304/Z-275 with availability of diameters from 80 to 300 mm. Modular metal chimney.
| Oi (mm) | OE (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 130 | 180 | 65 | 54 | 12 |
| 150 | 200 | 65 | 54 | 12 |
| 180 | 230 | 65 | 54 | 12 |
| 200 | 250 | 65 | 54 | 12 |
| 250 | 300 | 65 | 54 | 12 |
| 300 | 350 | 65 | 54 | 12 |
Features
Stainless Steel AISI 304, of thickness 0.5 mm.
Insulation: Rockwool D = 120 kg/m3.
It has plug with threaded 3/4 ".
Applications
Recommended for indoor installations with combustible liquid or gas.
Other appliances: stoves, boilers, fireplaces and inserts.
