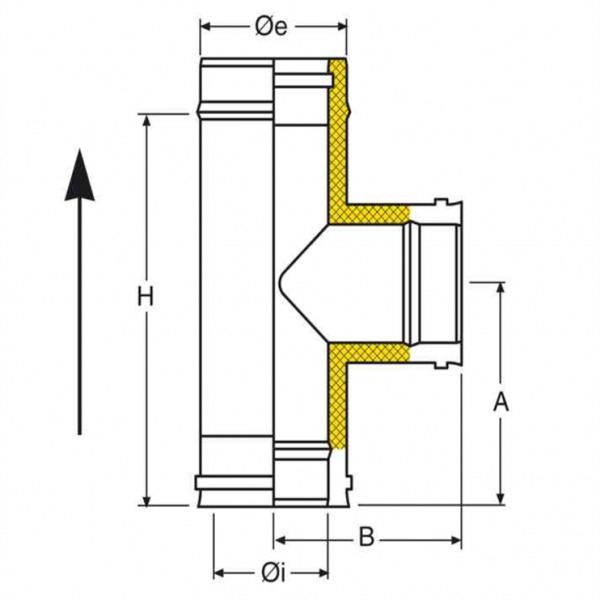

Tea 90 ° double wall stainless steel 316L – 304 with diameters from 80 to 300 mm. modular metal chimney.
| Oi (mm) | OE (mm) | H (mm) | A (mm) | B (mm) |
|---|---|---|---|---|
| 80 | 130 | 280 | 140 | 140 |
| 100 | 150 | 300 | 150 | 150 |
| 130 | 180 | 330 | 165 | 165 |
| 150 | 200 | 350 | 175 | 175 |
| 180 | 230 | 380 | 190 | 190 |
| 200 | 250 | 400 | 200 | 200 |
| 250 | 300 | 450 | 225 | 225 |
| 300 | 350 | 490 | 250 | 250 |
Features
Interior wall thickness: 0.4 mm. AISI 316L
Exterior wall thickness: 0.5 mm. AISI 304
Insulation: Rockwool D = 120 kg/m3 and 25 mm thick. Working temperature, up to 650 ° C.
Can be mounted with silicone seal , for best sealing.
Meets UNE 123001
Product certified according to CE/0099/EN 1856-1
Designations
According to the norm EN 1856-1:
T200-P1 W V2 L50040 OR 30 (WITH SEAL)
T600 N1 W V2 L50040 OR 70 (WITHOUT SEAL)
Applications
Recommended for outdoor installations and any type of fuel: biomass (pellets, coal, firewood,…), liquids or gas.
Other appliances: stoves, boilers, fireplaces, inserts, homes open and closed, condensation, generators, furnaces, Microgeneration.
