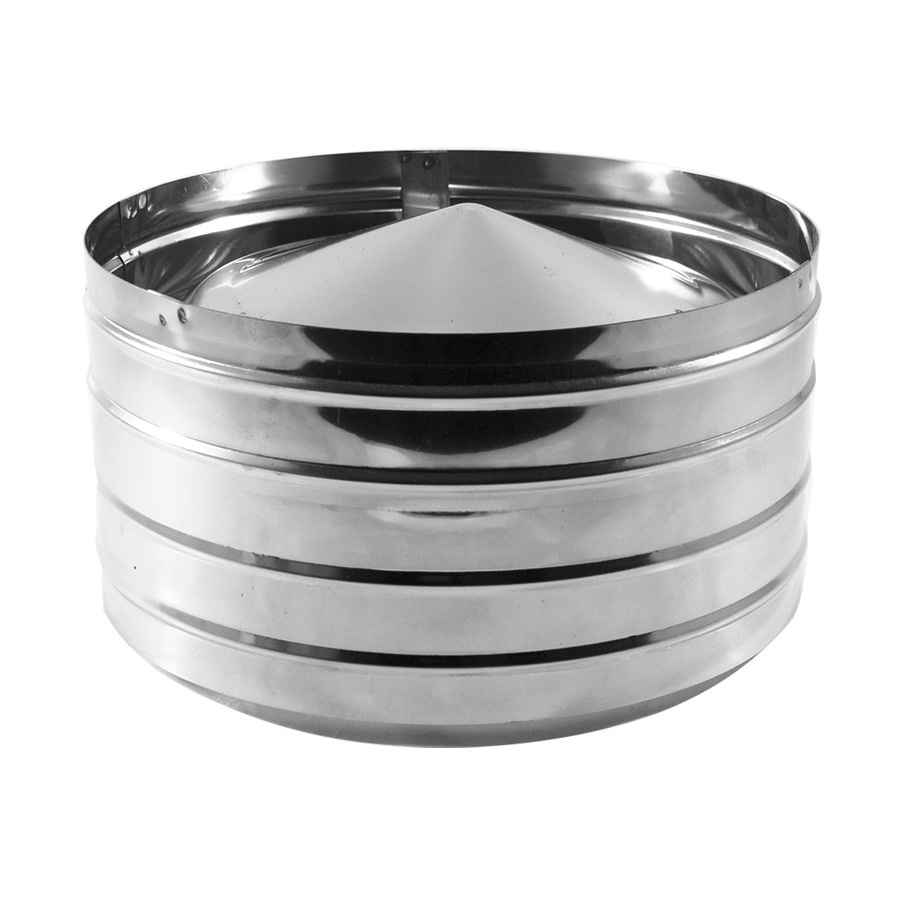

Output Antirrevoco, diameters from 80 to 300 mm. modular metal chimney.
| Oi (mm) | OE (mm) | H (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
| 80 | 130 | 325 | 222 | 165 | 65 |
| 100 | 150 | 375 | 260 | 200 | 65 |
| 130 | 180 | 405 | 303 | 200 | 65 |
| 150 | 200 | 405 | 310 | 250 | 65 |
| 180 | 230 | 405 | 370 | 250 | 65 |
| 200 | 250 | 405 | 418 | 250 | 65 |
| 250 | 300 | 405 | 468 | 310 | 65 |
| 300 | 350 | 405 | 530 | 310 | 65 |
Features
Stainless steel, thickness 0.5 mm.
Insulation: Rockwool D = 120 Kg/m3.
It prevents rain water and protects the air outlet.
Applications
Recommended for outdoor installations and any type of fuel: biomass (pellets, coal, wood…), liquids or gas.
Other appliances: stoves, boilers, fireplaces, inserts, homes open and closed, condensation, generators, furnaces, Microgeneration.
