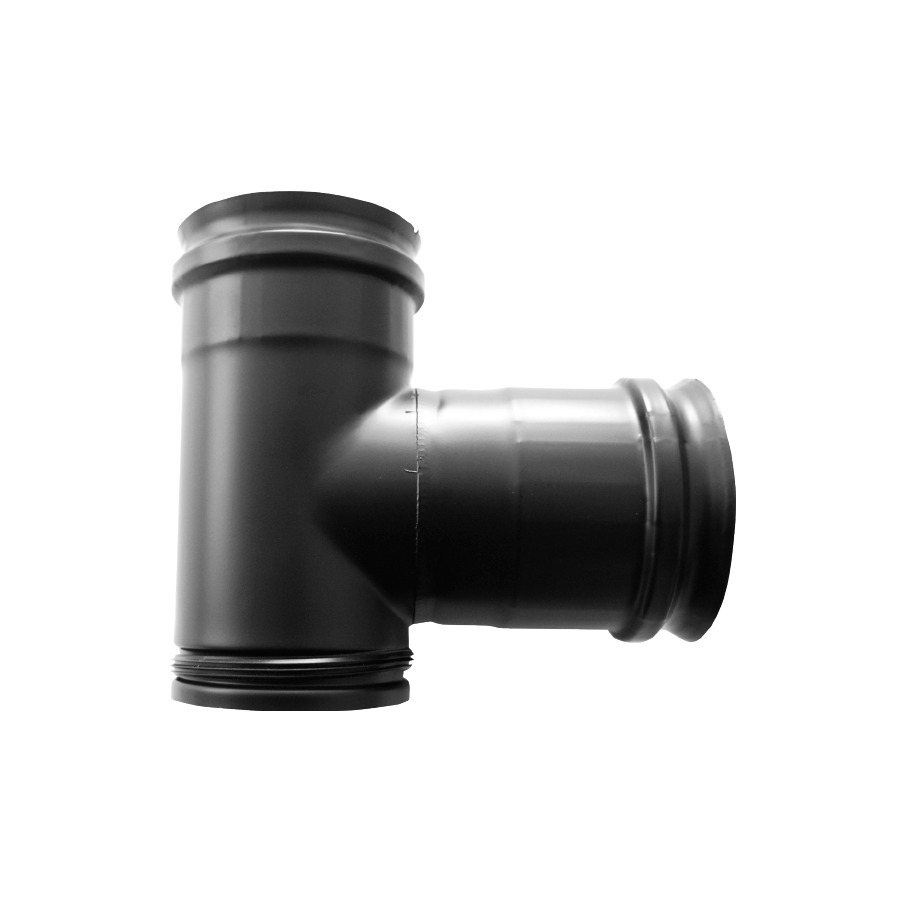

90º simple wall tee in AISI 316L 0.4 mm. thickness. Finish: painted black AT. Diameters 80 and 100 mm.
| Ø (mm) | H (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 80 | 190 | 86 | 119 | 54 |
| 100 | 190 | 96 | 119 | 54 |
| 130 | 270 | 115 | 162 | 54 |
| 150 | 270 | 125 | 162 | 54 |
| 180 | 440 | 140 | 247 | 54 |
| 200 | 440 | 150 | 247 | 54 |
| 250 | 440 | 175 | 247 | 54 |
| 300 | 440 | 200 | 247 | 54 |
Features
Wall thickness: 0.4 mm. AISI 316L.
Working temperature, up to 200 ° C.
All parts are supplied with silicone seal, which ensures tightness.
Not necessary connecting flange.
Applications
Recommended for indoor and outdoor facilities.
Other appliances: boilers, stoves, fireplaces and inserts in pellets.
