Extendable tube of 300 to 450 mm. Single wall AISI 316L of 0.4 mm. thick. Finish: bright and available in diameters from 80 to 300 mm.

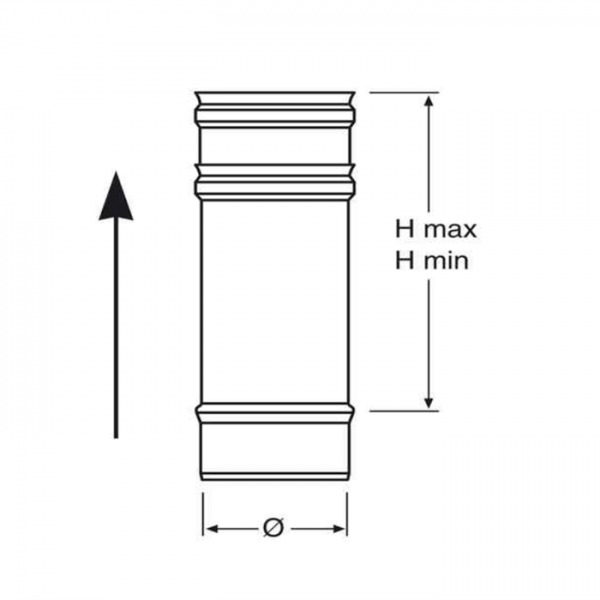

| Ø (mm) | H max (mm) | H min (mm) |
|---|---|---|
| 80 | 450 | 300 |
| 100 | 450 | 300 |
| 130 | 450 | 300 |
| 150 | 450 | 300 |
| 180 | 450 | 300 |
| 200 | 450 | 300 |
| 250 | 450 | 300 |
| 300 | 450 | 300 |
Features
Wall thickness: 0.4 mm. AISI 316L
Working temperature, up to 650 ° C.
Can be mounted with silicone, for best sealing.
Plug-in system (tongue and Groove).
Possibility to place a connecting flange to secure the connection between modules.
Meets UNE 123001:2009
Product certified according to CE/0099/EN 1856-1
Designations
According to the norm EN 1856-1:
T600 N1 W V2 L50040 G (WITHOUT SEAL)
T160-P1 W V2 L50040 OR 30 (WITH BOARD)
Applications
Recommended for indoor and outdoor facilities.
Other appliances: boilers, stoves, fireplaces, inserts.
